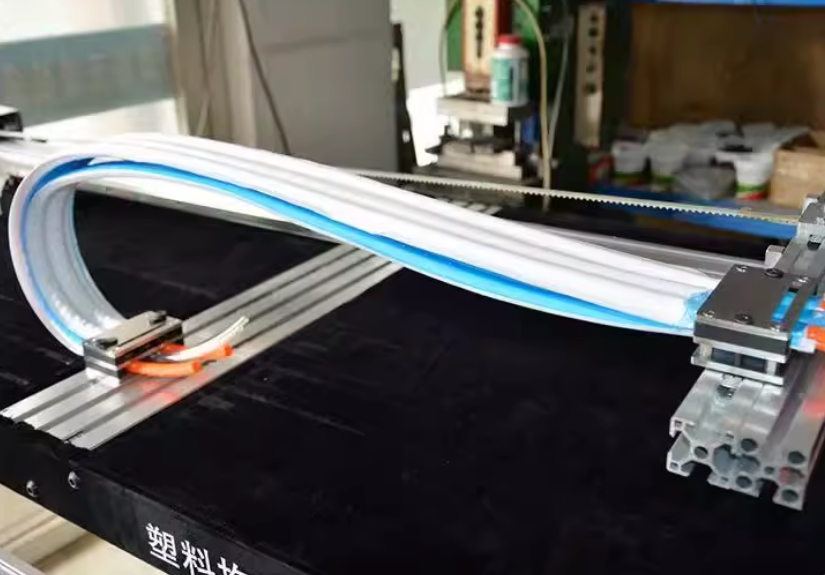

In high-speed semiconductor manufacturing and medical automation, a single micron of dust can lead to catastrophic yield loss. Traditional plastic cable carriers (drag chains) are a major source of particulate matter, as their moving links constantly rub together, shedding "black specks" into the environment. To maintain an ISO Class 1 (IPA Class 1) environment, engineers are shifting from linked carriers to Flexible Dust-Free Drag Chains. Here is how this technology solves the most common pain points in precision motion control.
Standard drag chains use a "pin-and-bore" design. Every time the machine moves, these joints generate friction and dust.
Modern pick-and-place machines and lithography equipment operate at extreme speeds. Standard cable management often fails under high G-forces, leading to cable snapping or "whipping" effects.
Moving cables are a factory for static electricity. In a semiconductor line, an electrostatic discharge (ESD) can fry sensitive wafers instantly.
Frequent maintenance is the enemy of profitability. Replacing a worn-out cable carrier requires hours of downtime and recalibration.

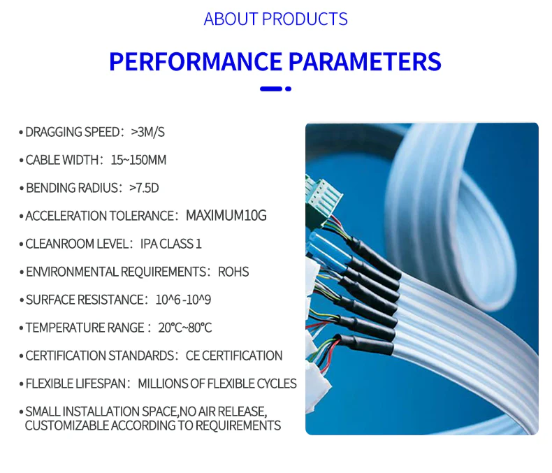

| Cleanroom Rating | ISO Class 1 (IPA Class 1) | ISO Class 5 or higher |
|---|---|---|
| Particle Generation | Near Zero | High (Link Friction) |
| Max Acceleration | 10G | 2G - 5G |
| Maintenance | Maintenance-Free | Requires Lubrication/Cleaning |
| ESD Safety | Inherently Antistatic | Requires Special Coatings |
