Can powder processing plants replace traditional hose clamp connectors with a sealed, tool-free snap-in system to meet FDA and ATEX standards?

Yes. The snap-in cuff-and-spigot system replaces hose clamps with an HF-welded polymer sleeve that snaps over stainless steel spigots, forming a 360° dust-tight, crevice-free seal with no tools. Food-grade sleeves are compliant with FDA 21 CFR 177.2600 (Report TQT4821B36E) and EU 10/2011; the static-dissipative grade (PU-10-AS) meets ATEX Directive 2014/34/EU for Zones 20, 21 and 22 (IEC 60079-32-2).

Can SOSHH® manufacture custom square-to-round, conical, and eccentric offset flexible sleeves without tooling fees?

Yes. Square-to-round, conical and eccentric offset sleeves are engineered as complete sleeve-plus-spigot assemblies. Standard sizes carry no tooling fee; complex custom geometries may carry a one-time sample/tooling fee that is 100% credited toward your first bulk order exceeding $3,000.

When should plants choose CNC-machined PTFE bellows over polyether TPU flexible connectors?

Choose CNC-machined pure PTFE bellows (continuous -70 to +260 °C, peak +280 °C, pH 0-14) for strongly corrosive acids, alkalis, solvents, or continuous temperatures above +150 °C. Choose polyether TPU (continuous -20 to +110 °C, peak +120 °C) for abrasive, high-flex powder and sifter duty, where its superior abrasion resistance and flexibility outperform PTFE.

What quality compliance certificates (DoC, FDA, EU 10/2011) are provided with SOSHH® shipments?

Each order ships with a Declaration of Conformity, FDA 21 CFR 177.2600 test report (Ref TQT4821B36E) for PU sleeves, EU 10/2011 / EC 1935/2004 formulation compliance, and an EN 10204 3.1 material test certificate for stainless steel spigots.

Why choose Polyurethane (TPU) over traditional Silicone or Rubber for powder flexible connectors?

Polyether TPU offers roughly 10x the abrasion resistance of rubber (39.0 mg DIN abrasion), 40 MPa tensile strength, ~600% elongation, and superior flex-fatigue life versus silicone. It is transparent for visual flow verification, latex-free, and FDA-compliant, making it the default for food and powder handling.

How do SOSHH® anti-static connectors (PUAS) perform in ATEX explosive dust zones?

The anti-static sleeve (PU-10-AS) is inherently static-dissipative polyether TPU with 10^6-10^9 Ω surface resistivity and no internal wires. It dissipates charge through the material itself, tested per IEC 60079-32-2 for ATEX Zones 20, 21 and 22 (Directive 2014/34/EU), removing the need for grounding straps across the joint.

Do flexible connectors skew the accuracy of load cells and loss-in-weight feeders?

The PU-05-WB ultra-thin (0.5 mm) micro-convolution weighing bellow is engineered for near-zero parasitic tare force, so it does not pull on load cells or distort weight readings in loss-in-weight and dosing applications.

Can SOSHH® flexible sleeves withstand negative pressure (vacuum) in pneumatic conveying systems?

Yes. PU-10 handles -50 mbar and PU-15 handles -120 mbar. For full vacuum to -1000 mbar, specify PU-10-VR, which has non-metallic high-elasticity polymer rings in HF-welded external pockets to prevent collapse while remaining metal-detector transparent.

How do snap-in connectors perform on high-frequency vibratory sifters and screeners?

They isolate sifter vibration from rigid pipework, preventing fatigue cracks and leakage. Set the installation gap with 10-15% extra slack to avoid cuff bunching and tearing at full amplitude, and select the abrasion-matched wall thickness (PU-10 or PU-15) for the duty.

How does the SOSHH® design prevent powder bridging and blockages in gravity chutes?

The smooth, crevice-free HF-welded bore and correct taper/conicity eliminate ledges and dead zones where powder can accumulate, bridge or block. Transparent TPU also lets operators visually detect buildup before it becomes a blockage.

How do SOSHH® tool-free connectors shorten CIP/SIP washdowns and equipment downtime?

The tool-free snap-in cuff removes and refits in under 60 seconds, eliminating clamp disassembly. The zero-crevice HF-welded bore drains cleanly with no hidden bacteria zones, and the CIP hydrolysis-resistant grade with electro-polished spigots withstands daily hot caustic CIP at 85 °C.

What is the continuous operating temperature limit for SOSHH® TPU connectors?

Standard polyether TPU runs continuously at -20 to +110 °C with a short peak of +120 °C. High-temperature PU (PUHT) runs -20 to +150 °C continuous with a +165 °C short-term peak. Above +150 °C continuous, use CNC-machined pure PTFE (-70 to +260 °C continuous).

Are SOSHH® snap-in flexible sleeves cross-compatible with standard industry quick-connect spigot grooves?

SOSHH sleeves are engineered to match our spigot profiles precisely. Cross-compatibility with other spigot profiles cannot be guaranteed; send your spigot drawing and we will confirm fit or supply matched spigots.

What makes SOSHH® connectors superior to standard off-the-shelf quick-connect brands?

HF-welded external pockets and a polymer snap-band system (instead of integrally molded wire) deliver a crevice-free, single-homogeneous-wall seal, 40 MPa tensile strength, ~600% elongation, transparent flow visibility, and a full compliance pack (FDA, EU 10/2011, ATEX) at drop-in prices with no custom tooling fee.

Does SOSHH® provide 3D CAD models and technical drawings for OEM equipment design?

Yes. We provide watermarked 2D outline PDFs immediately, and 3D CAD models or proprietary data upon signing an NDA/NNN agreement. Provide your equipment interface dimensions and we return OEM integration drawings.

What is the standard production lead time, MOQ, and international shipping support for SOSHH® connectors?

Lead time and MOQ depend on whether the part is a standard matrix size or a custom sleeve/spigot; exact values are confirmed in the quotation with payment milestones. We support FOB and DAP international shipping worldwide.

What documentation do you provide for ATEX zones?

For ATEX applications we provide the IEC 60079-32-2 static-dissipative test documentation and confirmation of compliance with ATEX Directive 2014/34/EU for Zones 20, 21 and 22. A full ATEX risk assessment of the entire line remains the end user's responsibility.

Why do flexible sleeves tear at the clamp edges on vibratory sifters?

Clamp edges create localized stress concentration under high-frequency dynamic shear, and an incorrect installation gap adds tension at full amplitude. The snap-in cuff distributes load evenly around the circumference and, with the correct IG, removes the clamp-edge failure point.

Do I need a gasket with a snap-in flexible connector?

No. The elastic cuff forms a 360° radial compression seal directly against the spigot, so no separate gasket is required. This eliminates a leak path and a spare-part item.

How do I measure the installation gap for a flexible connector?

IG is the distance between the two spigot end faces once the sleeve is fitted. Measure spigot OD (ØD) and sleeve length (CL), then set IG approximately equal to CL minus one cuff depth per end, adding 10-15% for vibratory service. Send us ØD and CL for a confirmed part number.

Which material should I choose for a food-contact powder line?

Polyether TPU (PU-10) is the default - transparent, FDA 21 CFR 177.2600 compliant, EU 10/2011 formulated, and latex-free. For abrasive food powders use PU-15; for daily hot caustic CIP use the CIP hydrolysis-resistant grade.

How abrasion-resistant is the polyether TPU sleeve compared to rubber and silicone?

Polyether TPU measures 39.0 mg (DIN abrasion) and offers roughly 10x the abrasion resistance of rubber, with far higher tear strength and flex-fatigue life than silicone - the reason it is the default for abrasive powder duty.

How long do SOSHH TPU sleeves last compared to silicone or rubber?

TPU typically outlasts rubber by roughly 10x and silicone by a wide margin in abrasive powder service. Actual life depends on powder abrasiveness, temperature, vibration amplitude and installation gap - correct IG and material grade are the two biggest levers.

Are SOSHH connectors compatible with CIP cleaning chemicals?

Yes. The zero-crevice HF-welded bore drains cleanly and resists standard CIP chemistry. For daily hot caustic CIP at 85 °C and aggressive washdown, specify the CIP hydrolysis-resistant grade with zero-hole electro-polished spigots.

When should a flexible connector sleeve be replaced?

Replace the sleeve when you observe surface cracking, hardening, thinning, loss of transparency, or the onset of powder leakage at the cuff. As a rule, schedule inspection at each screen change or CIP cycle and replace proactively before failure.

What are the standard diameter and length ranges?

Standard diameters run Ø102-Ø804 mm across a 20-size matrix, with lengths 100-1000 mm in 50 mm increments. Custom diameters up to Ø1000 mm and non-standard lengths are available.

What is the difference between PU-10 and PU-15 sleeves?

PU-10 is a 1.0 mm wall sleeve rated +0.35 bar / -50 mbar for general food and powder duty. PU-15 is a 1.5 mm wall sleeve (50% thicker) rated +0.70 bar / -120 mbar for abrasive powders and higher positive-pressure duty.

What is the anti-static grade and how does it work?

The PU-10-AS grade is inherently static-dissipative polyether TPU with 10^6-10^9 Ω surface resistivity and no internal wires. Charge bleeds away gradually through the material itself, removing the need for grounding straps across the joint.

When should I choose pure PTFE instead of TPU?

Choose pure PTFE (pH 0-14, -70 to +260 °C continuous, +280 °C peak) for strongly corrosive acids, alkalis, solvents, or continuous temperatures above +150 °C. TPU (peak +120 °C) is better for abrasive, high-flex powder duty.

What materials are available besides TPU?

Four core materials: polyether TPU (standard), pure PTFE (corrosive/high-temperature), food-grade silicone (high-temp, low-abrasion), and EPDM/NBR rubber (industrial dust ducting). TPU is the default for food and powder handling.

What is the maximum sleeve length for a given diameter?

Standard length runs to 1000 mm. Longer sleeves or large-travel coordination are engineered case-by-case; for large swing use the fiber-reinforced or spiral-wire grade.

Are snap-in connectors suitable for dairy and milk powder?

Yes. The transparent polyether TPU sleeve, FDA 21 CFR 177.2600 compliance and zero-crevice CIP-compatible bore make it a drop-in for milk powder sifter, dryer and packing lines.

Are they suitable for battery materials and flammable powders?

Yes. The PU-10-AS static-dissipative grade (10^6-10^9 Ω) is specified for lithium battery powder and combustible dusts, meeting ATEX Zone 20/21/22 static-control requirements (IEC 60079-32-2).

Can they handle chemical and corrosive powders?

Yes. For strong acids, alkalis and solvents specify pure PTFE (pH 0-14, -70 to +260 °C). For mild or abrasive chemical powders, the heavier-wall PU-15 is typically the economical choice.

What is the difference between conductive and static-dissipative?

Conductive materials (<10^4 Ω) discharge charge abruptly and can create sparks; static-dissipative materials (10^6-10^9 Ω) bleed charge away gradually and safely - exactly what combustible-dust handling requires.

Do I need a grounding strap across the joint?

Not with the PU-10-AS grade - charge dissipates through the connector material itself, so no metal braid or grounding strap is needed. Standard non-dissipative sleeves may require external grounding for combustible powders.

Will the sleeve trigger my inline metal detector?

The product-contact bore contains no embedded metallic elements, so the sleeve itself will not cause false rejects. Confirm the complete assembly including spigots with your equipment supplier for the full detector configuration.

How do I weld the spigot to my equipment?

Spigots are supplied weld-on (SS304 or SS316L) with a straight tail that can be field-cut to match existing pipe. Each order ships with an EN 10204 3.1 material test certificate and a welding/positioning guideline.

Can I cut the spigot tail to fit my existing pipe?

Yes. The straight tail section is designed to be trimmed on-site to the required angle and length before welding, so you can retrofit onto existing hoppers and conveyors without re-engineering the outlet.

Does sleeve orientation matter?

For standard straight sleeves there is no directional flow preference. For tapered, square-to-round or anti-static sleeves, orientation markings are provided on the cuff and must be observed during fitting.

How long does it take to install a snap-in connector?

Under 60 seconds per end, tool-free. Once the spigots are welded in place, replacing a worn sleeve is a pull-off / snap-on operation production staff can do during a line stop.

Does the TPU contain latex, BPA or phthalates?

No. The sleeves are 100% virgin polyether TPU - latex-free, BPA-free and phthalate-tested. Phthalate, nonylphenol and BPA test reports are available on request.

What is the surface resistivity of standard vs anti-static sleeve?

Standard TPU is insulative at >10^12 Ω. The anti-static PU-10-AS grade is static-dissipative at 10^6-10^9 Ω.

Do you offer free samples?

Standard samples ship freight collect. Custom samples carry a tooling fee that is 100% credited toward your first bulk order exceeding $3,000.

How do I request a quotation?

Send your spigot diameter (ØD), sleeve length (CL), quantity, and your equipment brand/model - or a drawing - to amin@soshh.com. We return a same-day quotation with HS code (3926909090 / 7326901900), country of origin, material spec, tolerances, lead time and payment terms.

Food-Grade Flexible Connectors | TPU, PU & PTFE Powder Handling Sleeves

Make the connection more reliable

SF Internal Snap-On Flexible Connectors

TC Quick-Clamp Flexible Connectors

LightTC quick-clamp flexible connector

FLC round flange flexible connector

FLR square flexible connector

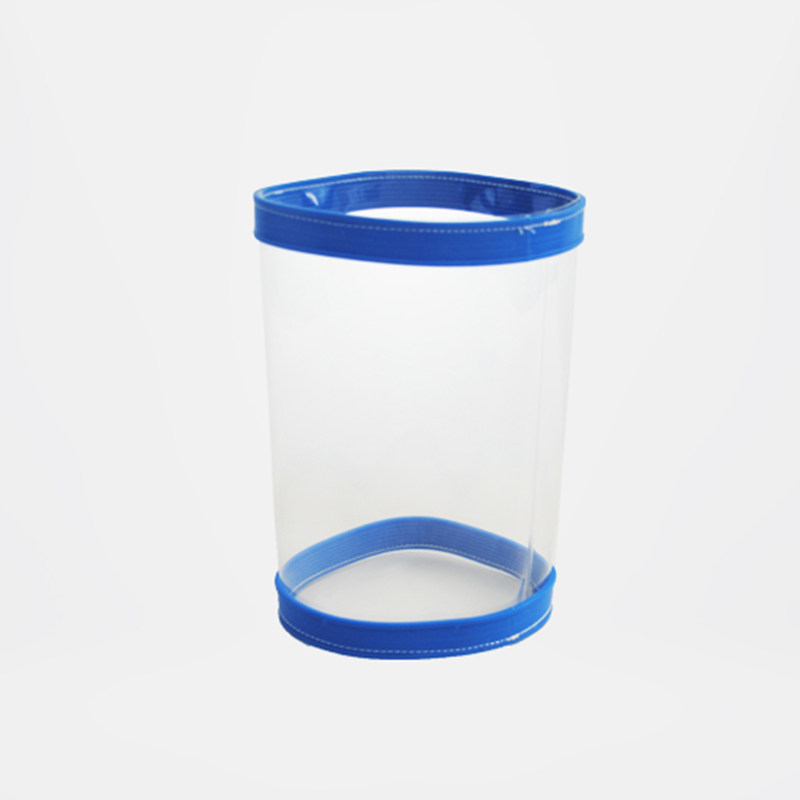

HC hose clamp flexible connector

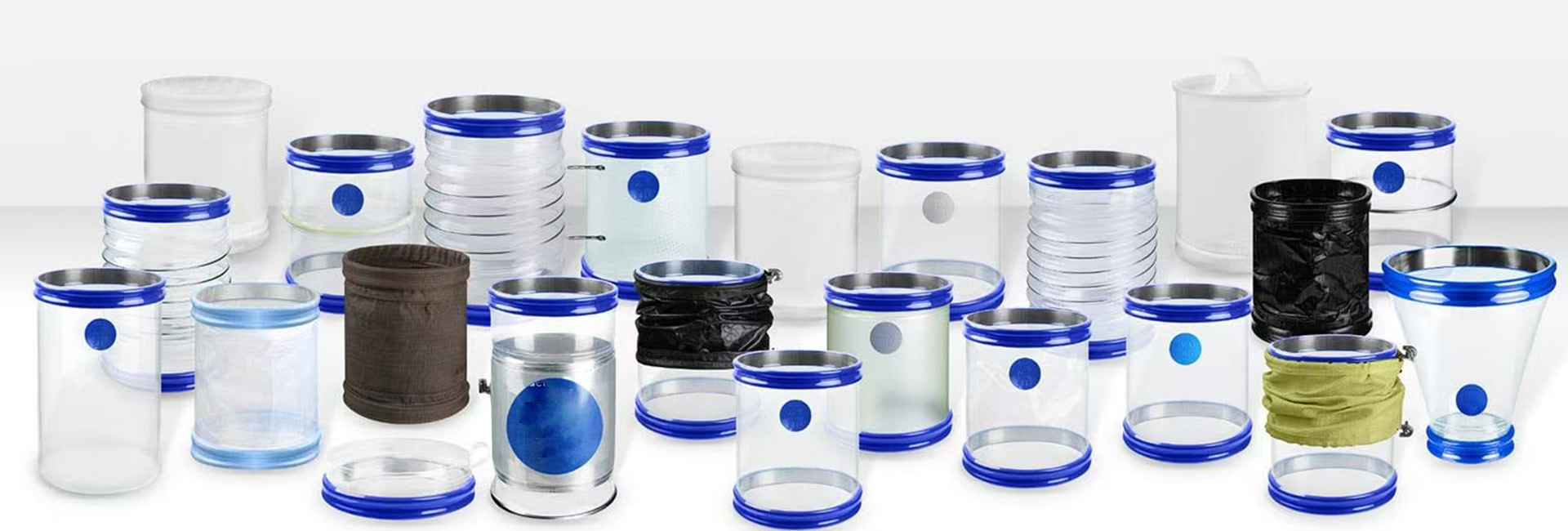

Our Products

High Quality and Affordable Prices

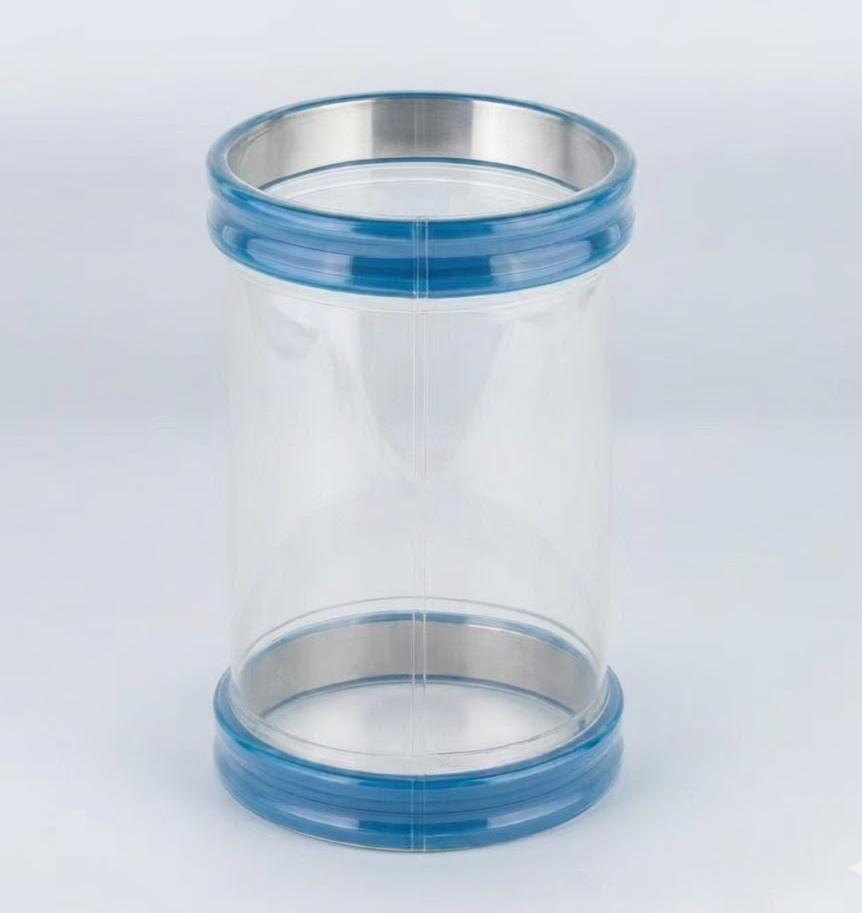

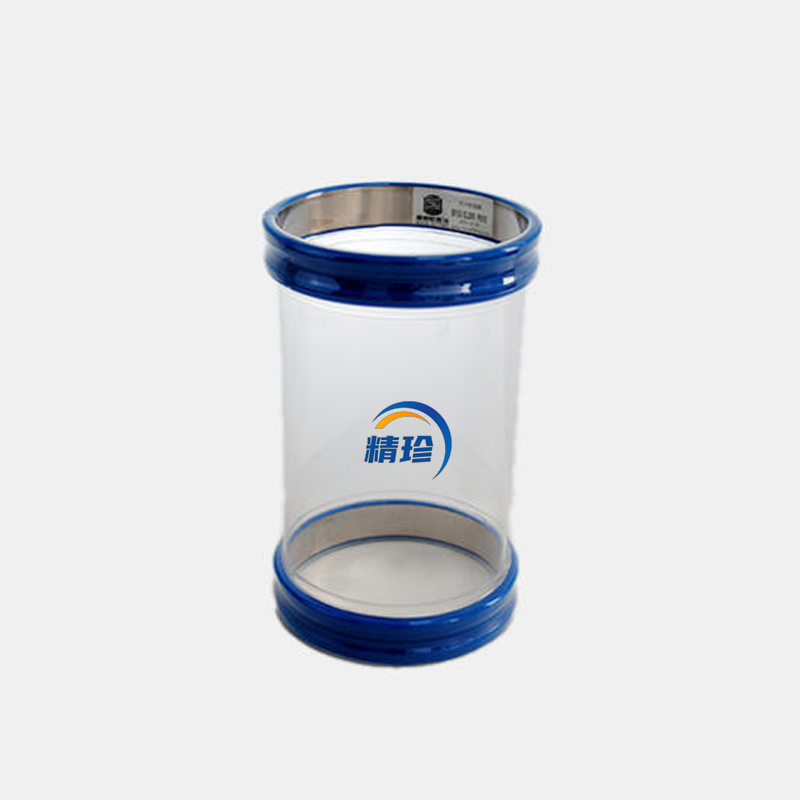

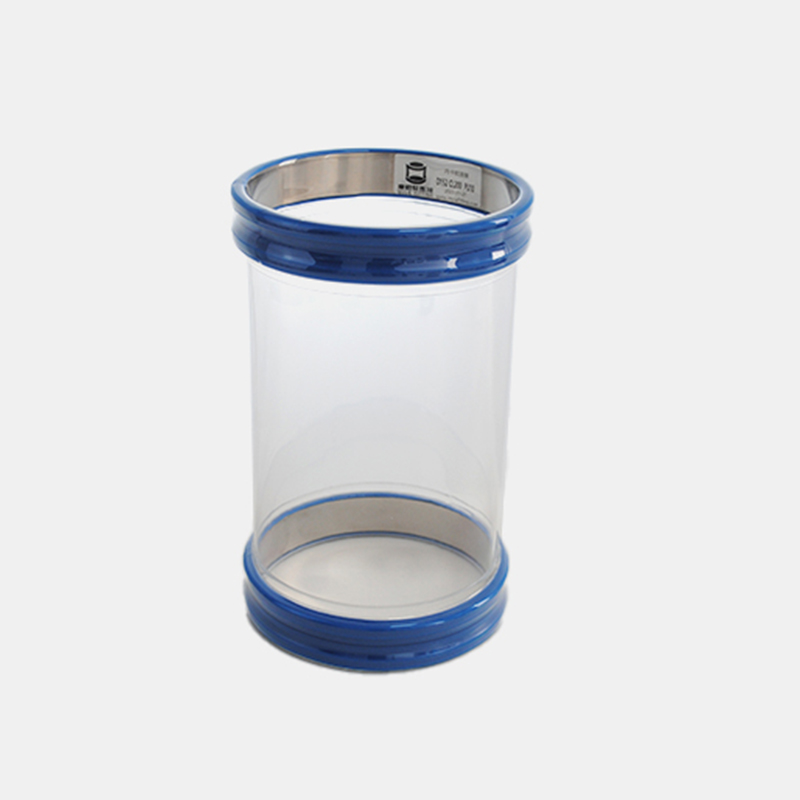

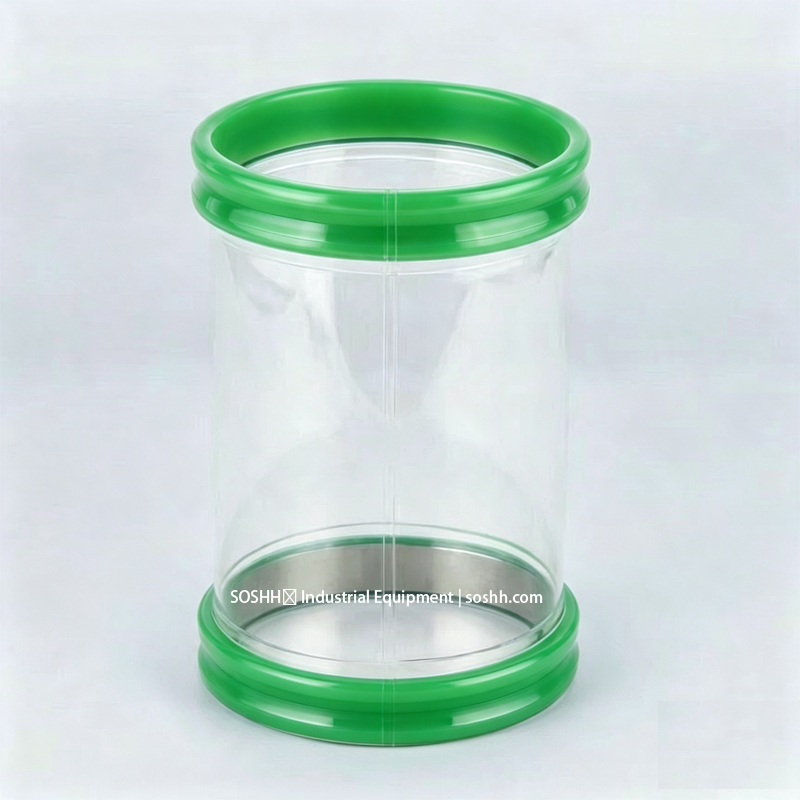

SF Internal Snap-On Flexible Connector

Material and Size: Customizable

Innovative Design, Reliable Sealing

Product Features: Ingeniously embedded spring steel strips and sealing rings at both ends, compatible with the exclusive SF Internal Snap-On Flexible Connector steel head, snap-on design

More

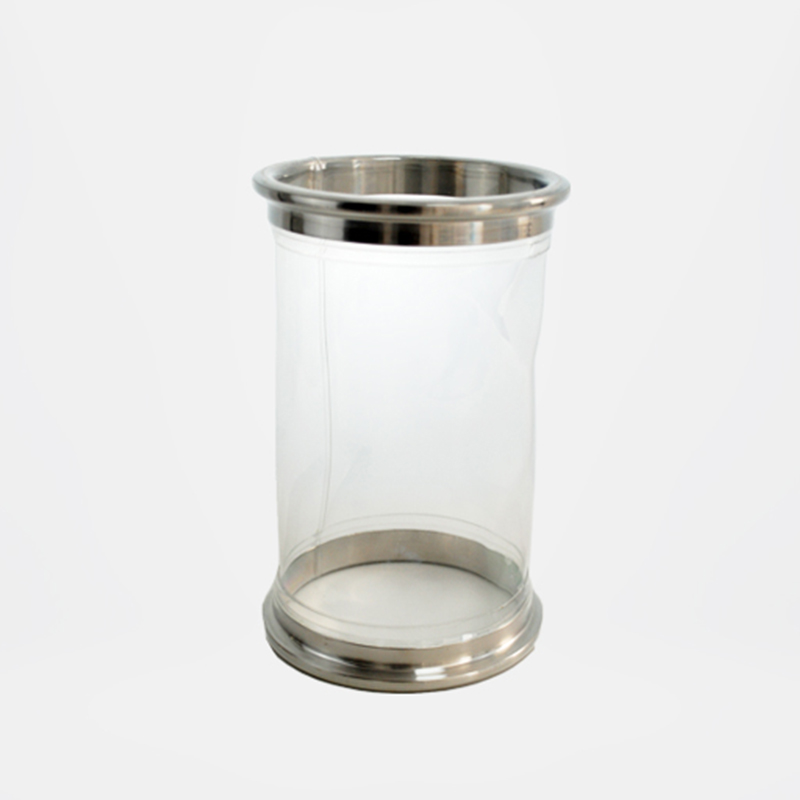

TC Quick-Click Flexible Connector

Material and Size: Customizable

Quick Connect, Clean and Reliable

Product Features: Standard stainless steel sanitary quick-close connectors on both ends, integrated sealing gaskets, and no need for gaskets, saving time and effort

More

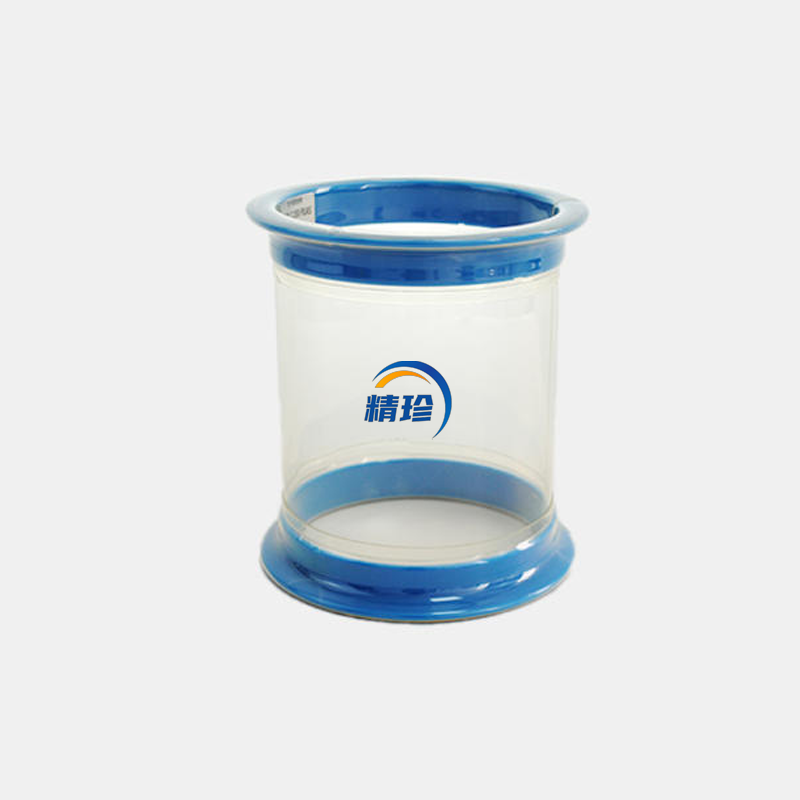

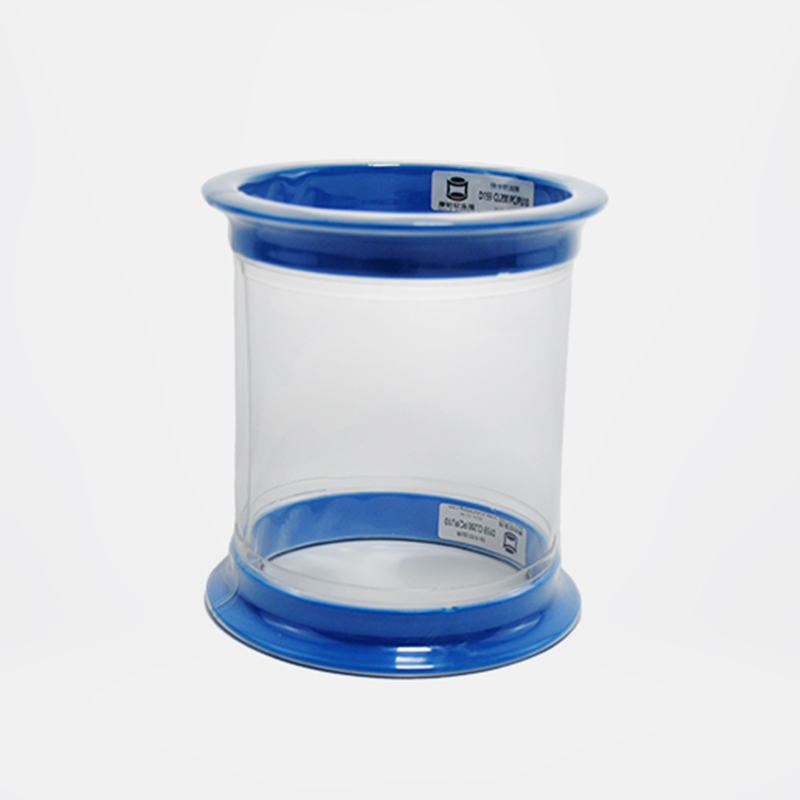

LightTC quick-close flexible connector

Material and size: Customizable

Lightweight upgrade, convenient and efficient

Product Features: Equipped with the newly improved LightTC quick-clamp connectors on both ends, weighing only one-eighth the weight of stainless steel

More

About Us

SOSHH is a leading specialist dedicated to the engineering, quality control, and supply of premium food-grade flexible connectors for powder and bulk material processing systems. Through continuous design optimization and the use of superior materials, we resolve the toughest leakage and contamination challenges faced by international industries. Our high-molecular polyurethane (PU/TPU) internal snap-on flexible connectors are widely utilized across global sectors, including flour milling, battery materials, chemicals, and pharmaceutical processing. By coordinating directly with top-tier manufacturing facilities and managing strict quality control, we ensure every batch delivers 100% leak-proof seals, exceptional abrasion resistance, and full compliance with strict sanitary protocols.

Food
Pharmaceuticals
New Energy
Chemicals
More Powder Form Industries

2018 Years

Company Founded

2000 ㎡

Modern Factory

1400 +

Customer Served

100000 +

Products Delivered

Learn More

Our Partners

Serving Powder Industry Leaders

Our Service Process

With more than 8 years of experience in manufacturing, we are able to respond quickly to our customers' needs, With comprehensive expertise in fluid and powder handling connections, we rapidly respond to your custom requirements, ensuring strict quality standards and fully controlled delivery schedules.

Contact Customer Service

Submit your specific requirements, including dimensions, temperature limits, and material compatibility (such as FDA PU/TPU) for your custom flexible connectors.

Receive Technical Quotation

Our team will evaluate your application, verify engineering specs, and provide a detailed quote covering lead times, materials, and delivery options.

Production & Quality Delivery

Once confirmed, we coordinate closely with our manufacturing facilities. Every batch undergoes strict quality inspection before shipment to ensure a perfect, tool-free installation.

Product Solutions

Used in a variety of powder handling applications, we leverage our extensive industry experience to offer custom polyurethane (PU/TPU) flexible connectors. Designed to meet complex operational demands, our solutions ensure seamless, leak-proof integration across your entire production line.

Mixing and Batching: Silos, Screw Conveyors

Weighing and Dosing: Weighing Scales, Silos

Sieving: Vibrating Screens

Milling and Grinding: Crushers, Grinders

Metal Detection: Metal Detectors

Packaging: Packaging Machines

Get An Instant Quote

High-Performance TPU Flexible Connectors for Powder Processing

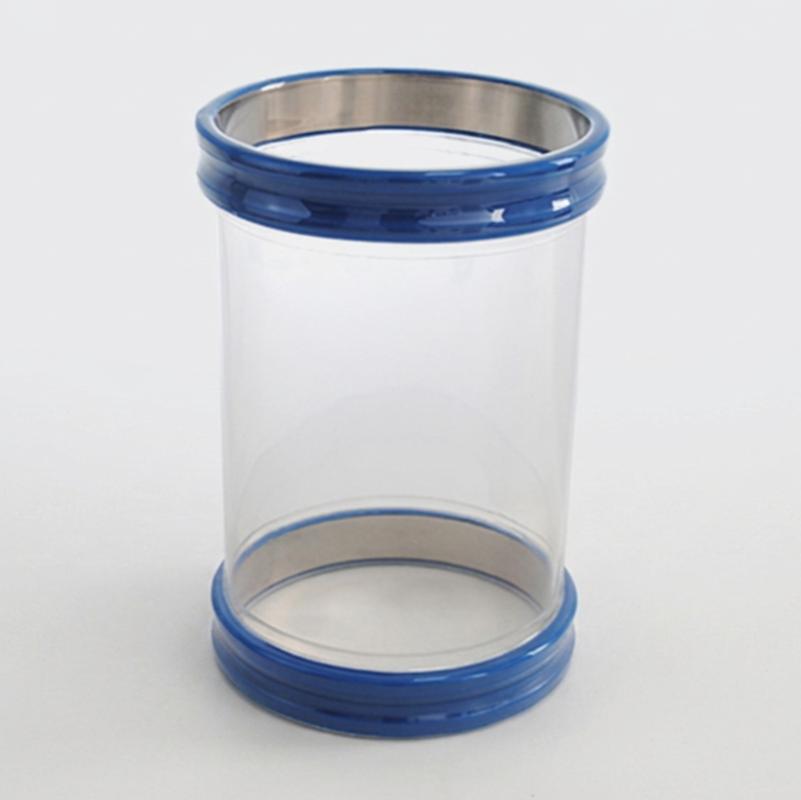

SF Internal Snap-On Flexible Connector | FDA PU Sleeves | ATEX Antistatic | SOSHH®

Hygienic food-grade polyurethane (PU/TPU) flexible sleeve engineered with integrated internal spring steel bands for tool-free, instant snap-in installation. providing a completely smooth 100% flush inner wall (Zero Dead Zone) to prevent powder entrapment and cross-contamination in pharmaceutical, food, and ATEX anti-static dust processing lines.

Learn more

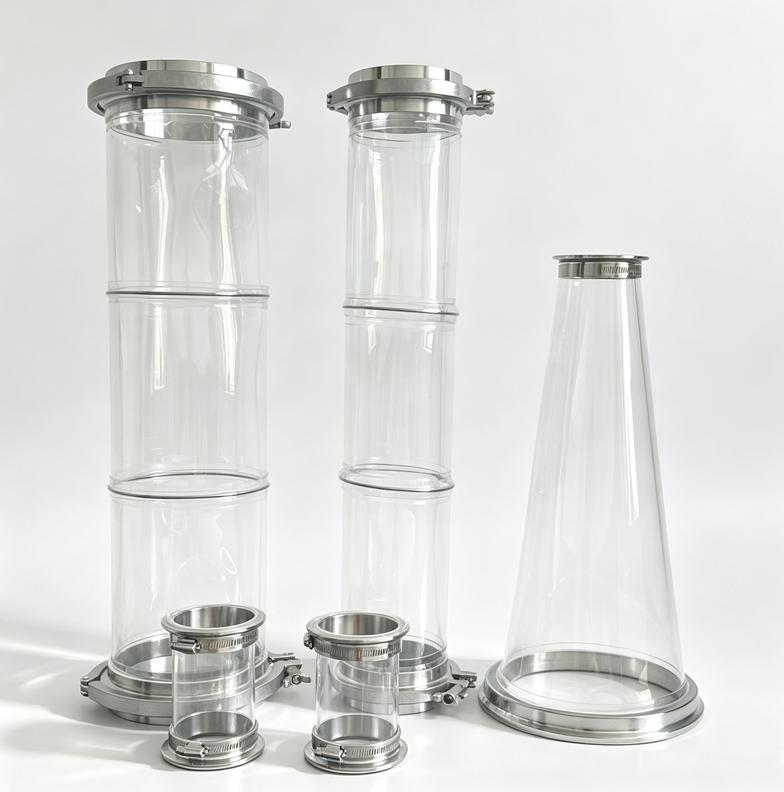

Sanitary Tri-Clamp Flexible PU Connectors with Integrated Gasket | SOSHH®

Upgrade food and pharmaceutical powder lines with SOSHH® Tri-Clamp Flexible PU Connectors. Features integrated O-ring gaskets (eliminating loose washers and powder contamination), FDA 21 CFR 177.2600 compliance, ATEX anti-static grades, and 30-second tool-free TC assembly. Request 3D STEP CAD files today.

Learn more

SOSHH® LightTC Conical Reducer & Angular Offset Sanitary Flexible Connectors (FDA Compliant)

Engineered for gravimetric feeders and misaligned sanitary chutes. The SOSHH® LightTC™ Series combines FDA-compliant polyether TPU with ultra-lightweight composite ferrules (80% lighter than stainless steel) to eliminate powder bridging and zero out load-cell tare drift. Available in concentric/eccentric conical reducers and pre-formed angular offsets for tool-free, CIP-ready Tri-Clamp installation.

Learn more

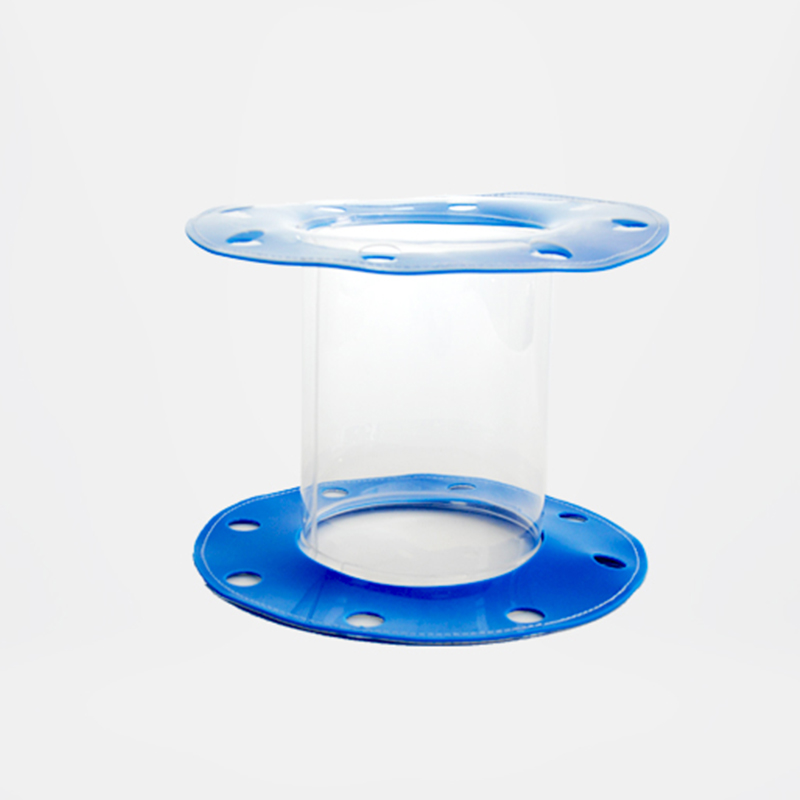

SOSHH® FLC Round Flange Flexible Connector | Heavy-Duty Food-Grade PU Expansion Sleeves

SOSHH® FLC round flange flexible connectors provide 100% dust-tight, zero-leakage sealing for heavy-duty powder handling, vibratory sifters, and pneumatic conveying lines. Engineered with FDA-compliant virgin Polyurethane (PU10, ATEX Anti-Static PUAS, High-Temp PUHT, and Fiber-Reinforced PURF), the integrated flanged cuffs lock securely between metal pressure plates to withstand continuous pressure and vacuum. Direct replacement for legacy bolted flange connections with zero tooling fees for custom bolt circles and diameters.

Learn more

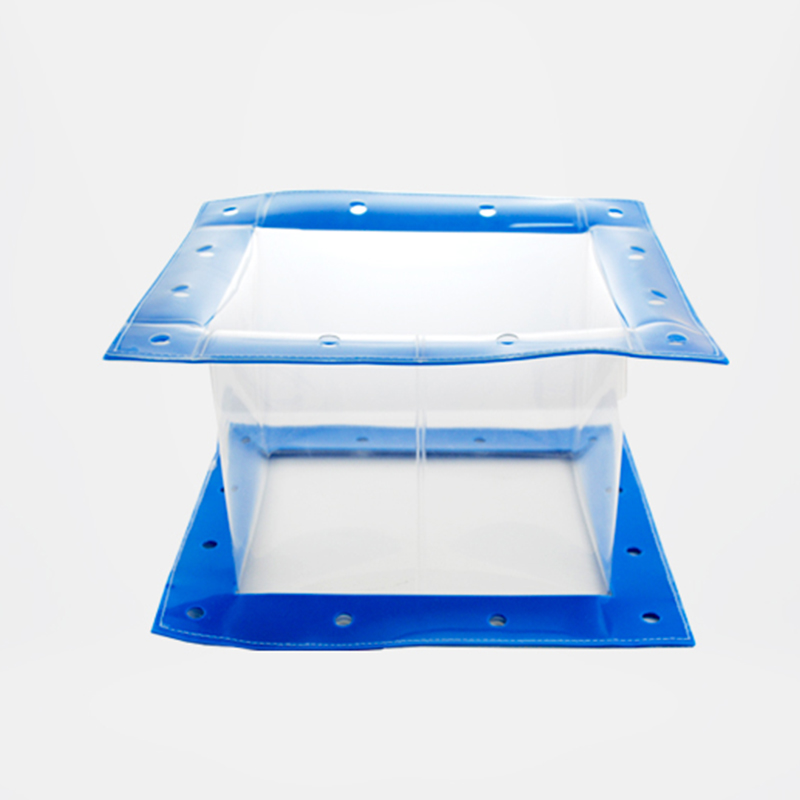

SOSHH® FLR Square Flexible Connectors | Custom Rectangular PU Flange Expansion Joints

SOSHH® FLR square flexible connectors and custom rectangular PU expansion joints provide 100% dust-tight sealing for vibrating chutes, rectangular hoppers, and rotary valve transitions. Engineered from FDA-compliant Polyurethane (PU10, ATEX Anti-Static PUAS, High-Temp PUHT, and Fiber-Reinforced PURF) with reinforced corners to prevent tearing. Factory-direct custom dimensions with zero tooling fees.

Learn more

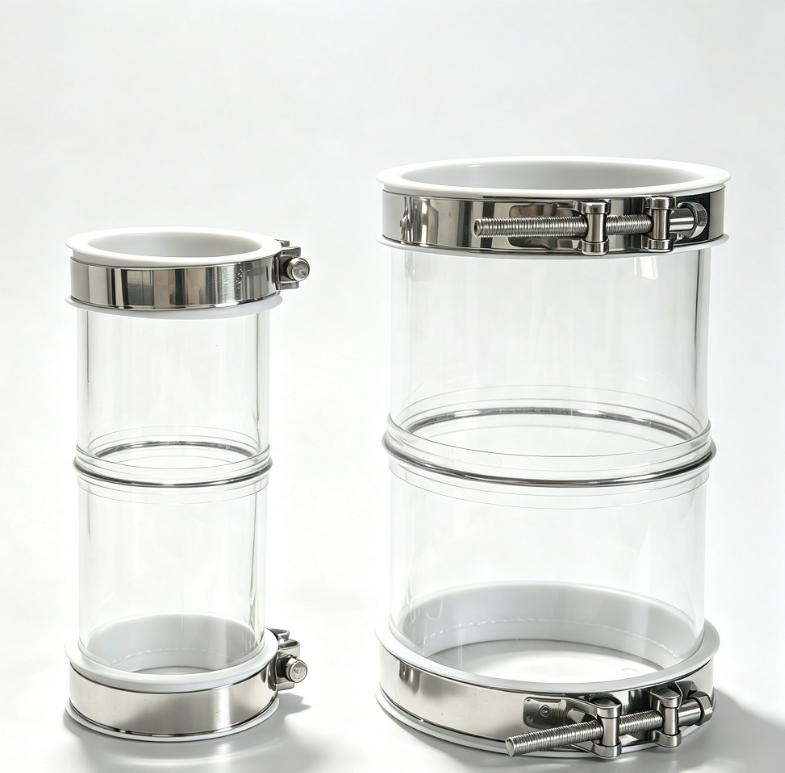

Food-Grade HC Hose Clamp Flexible Connector | SOSHH® PU Sleeves for Bulk Solids

SOSHH® HC-series food-grade TPU/PU flexible connectors for bulk solids handling. Tool-free external clamp installation over pipe OD. FDA 21 CFR 177.2600 compliant & ATEX anti-static versions available. Free 3D STEP CAD models.

Learn more

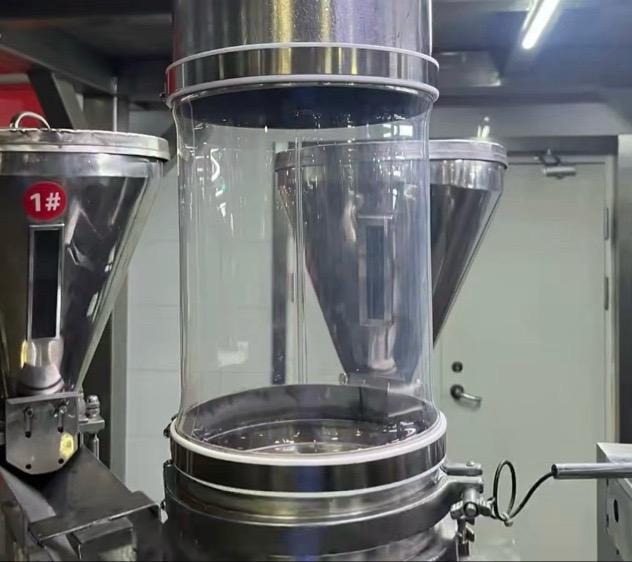

Stop Leaks & Downtime: High-Performance TPU Flexible Connectors

By Admin October 28, 2025

In powder processing, leaks cause downtime and product loss. Jingzheng's high-molecular TPU flexible connectors deliver 100% leak-proof seals, superior abrasion resistance, and FDA compliance—ideal for vibrating sifters, hoppers, and ATEX zones.

Weld-On Steel Spigots for Snap-In Flexible Connectors | Engineering Specs & Size Chart

By Admin April 28, 2026

SS304/SS316L weld-on spigots: 50mm & 90mm heights, ISO 2768-m, EN 10204 3.1, tapered seal, 6mm release hole. Standard Ø102–804mm.

The Ultimate Guide to Choosing the Best Flexible Connector for Powder Transfer | SOSHH

By Admin April 22, 2026

Selecting the best flexible connector for powder transfer is critical for maintaining zero-dust environments, preventing cross-contamination, and protecting sensitive load cells in bulk material handling. Traditional hose clamps and fabric sleeves frequently suffer from powder leakage, sanitary dead zones, and time-consuming CIP/SIP washdowns. The SOSHH® Snap-In Polyurethane Flexible Connector system is engineered to solve these exact processing challenges for pharmaceutical, food-grade, and chemical manufacturing pipelines.

Manufacturing & Quality Control

By coordinating directly with trusted manufacturing partners, we ensure strict quality control, FDA-compliant materials, and precise dimensions for every batch of flexible connectors.
